Commutator Fun Jig ri

Awọn Commutator ti wa ni lilo fun Jig Saw motor. NIDE jẹ oniṣẹ ẹrọ onisọpọ alamọdaju ati olupese ni Ilu China. Ile-iṣẹ iṣelọpọ commutator wa ni wiwa agbegbe ti o ju 5,000 eka. A ni iriri pipe ọkọ ayọkẹlẹ commutator okeere ati gbejade awọn oriṣiriṣi oriṣiriṣi ti awọn onisọpọ, pẹlu iru Hook, oriṣi riser, iru ikarahun, iru ọkọ ofurufu, O le ni idaniloju lati ra Commutator Fun Jig Saw lati ile-iṣẹ wa ati pe a yoo fun ọ ni ọja ti o dara julọ lẹhin-tita. iṣẹ ati ifijiṣẹ akoko.

Fi ibeere ranṣẹ

ọja Apejuwe

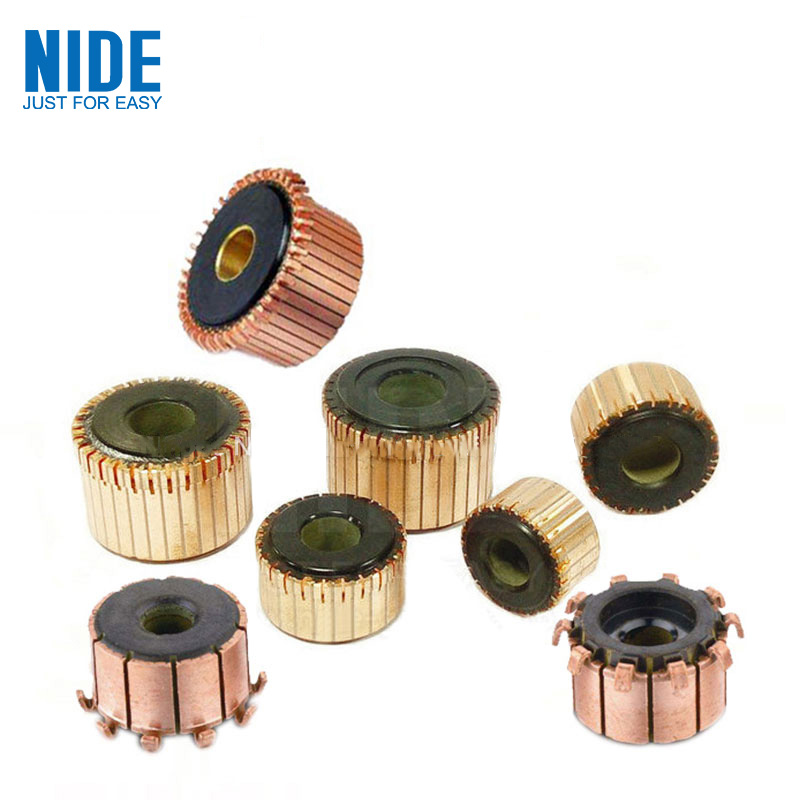

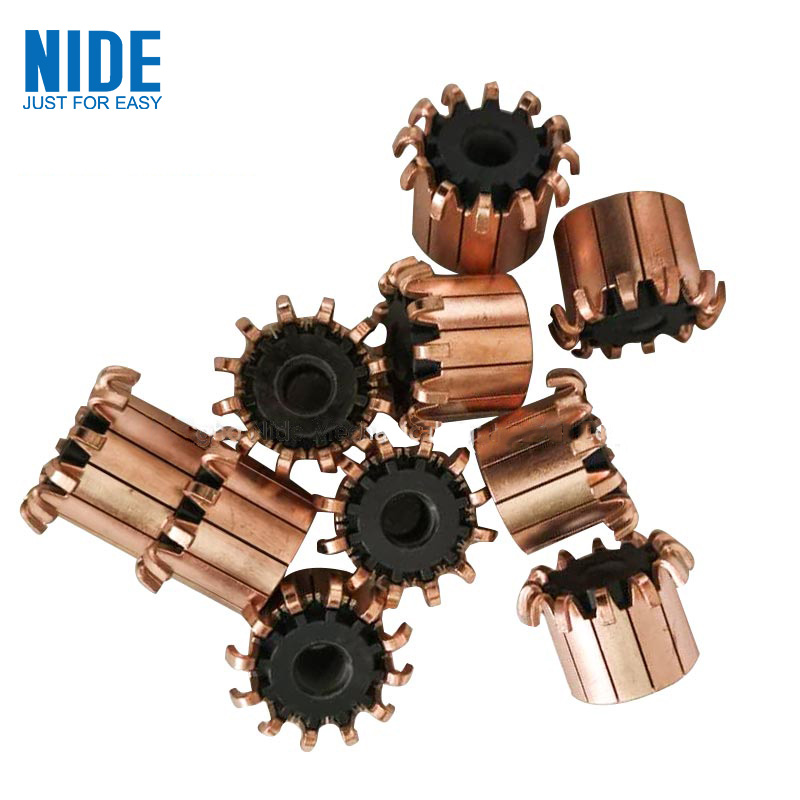

Commutator fun Jig ri

1.Ọja Ifihan

Onisọpọ yii jẹ apẹrẹ pataki fun awọn ẹrọ jig saw, lilo awọn ohun elo didara, pẹlu iṣẹ ṣiṣe to dara, ariwo kekere, ati igbesi aye iṣẹ pipẹ.

2.Product Parameter (Specification)

Awọn ohun elo	0,03% tabi 0.08% Ejò sliver tabi ti adani
Iwọn	Adani
Asọpọ iru	Iru kio / Iru igbega
Ohun elo	Kan si ile-iṣẹ adaṣe, awọn irinṣẹ agbara, awọn ohun elo ile, ati awọn mọto miiran
Package	Dara fun gbigbe ilẹ ati okun
Agbara iṣelọpọ	1000000pcs / osù

Awoṣe No.	OD (mm)	ID(mm)	Lapapọ iga (mm)	Apa Ipari (mm)	Hook / Riser dia. (mm)	Pẹpẹ No.
S-02001	37.5	Ï†13	24	20.5	38.5	32
S-03002	15.75	Ï†13	11.25	9.5	16	24
S-03003	24	Ï†9	17	14	25	24
S-03003B	24.5	Ï†10	17.5	14	25.5	24
S-03003C	24.5	Ï†10	17.5	14	25.5	24
S-02004	24	Ï†9	15	13	24.5	24
S-03004A	23.2	Ï†9	15	13	24	24
S-03005	24	Ï†9	17	14	25	24
S-03005A	24	Ï†9	17	14	25	24
S-03006	37.5	Ï†13	26	23	38.5	32
S-03007	25.5	Ï†10	17	14	26.5	24
S-03007B	25.5	Ï†10	17	14	26.5	24
S-03008	23.5	Ï†9	14	12	24	24
S-03009	24	Ï†9	16.6	14	29	24
DZQD-RZ32-010	28.5	Ï†12	17.5	16	34.3	24
S-03011	23.5	Ï†9	17.5	14	28	24
DZQD-RZ32-012	23.5	Ï†10	18	16.4	28.5	24
S-03013	23	Ï†8	16	14	23.5	24
S-03014	28.5	Ï†11	20	17	29.5	24
S-03015	22.5	Ï†9	17.5	17.2	30	10
S-03016	28	Ï†14	20	19.2	36.8	12
S-03016A	28	Ï†14.2	20	19.2	36.8	12
S-03017	28.5	Ï†9	17.5	15	29.5	24
S-03018	34.3	Ï†13	22	20.5	41.5	24
S-03019	24.5	Ï†10	17.5	14	25.5	24
S-03019A	24.5	Ï†10	17.5	14	25.5	24
S-03020	28.5	Ï†11	17	14	29.5	24
S-03021	20.5	Ï†10	18	13.5	30.5	12
QZQC-RZ12-022	20.5	Ï†10	17.8	13.5	26	12
S-03024	40.4	Ï†13	24	20	42	50
S-03025	23.2	Ï†8	17.5	17	30	12
QZQC-RZ32-026	20.2	Ï†8	14.6	14.1	25	16
QZQC-RZ32-026A	20.2	Ï†8	14.6	14.1	25.5	16
QZQC-RZ12-027	18.9	Ï†8	14.5	12.8	24	12
S-03028	15.5	Ï†7	11.4	11.7	20	9
S-03030	22.5	Ï†9.2	18	17.7	30.6	10
S-03031	22.5	Ï†12	21	20.5	30.5	10
S-03032	28.5	Ï†12	17.5	14.5	29.5	24
S-03033	30	Ï†10	20	17	35.5	24
S-03033A	30	Ï†11	21	18	36	24
S-03033B	30	Ï†11	21	18.5	36	24
S-03033C	30	Ï†11	21	18.5	36	24
JZQC-RZ32-037	22	Ï†8	16	14.2	27	16
S-03038	35.4	Ï†14	42.5	38	48	23
S-03038A	35.4	Ï†14	42.5	38	48	23
S-03044	22.5	Ï†10	17.5	17	28.5	10
S-03045	35.5	Ï†15.75	23.5	20	46	19
S-03046A	37.5	Ï†14	42	38	49.5	23
S-03046B	37.5	Ï†14	42	38	49.5	23
S-03047	45	Ï†15.5	50	44.4	62	21
S-03048	34	Ï†10.2	38.5	34.5	46.5	23
S-03050	15	Ï†5	16.5	15.5	20	12

3.Product Ẹya Ati Ohun elo

Commutator jẹ lilo pupọ ni ọpọlọpọ awọn ile-iṣẹ, gẹgẹbi Jig Saw, awọn irinṣẹ agbara, ile-iṣẹ ọkọ ayọkẹlẹ, awọn gbigbe window, lilu itanna ati bẹbẹ lọ.
