Commutator Fun Electric Planer

A jẹ alamọdaju ni onisọpọ iṣelọpọ fun Eleto Itanna. NIDE ti wa ni aaye yii fun ọpọlọpọ ọdun, ati pe o ti ṣe agbejade awọn ọgọọgọrun iru alarinkiri. Wa commutators o kun ni kio iru, groove iru, alapin iru ati awọn miiran ni pato.

Fi ibeere ranṣẹ

ọja Apejuwe

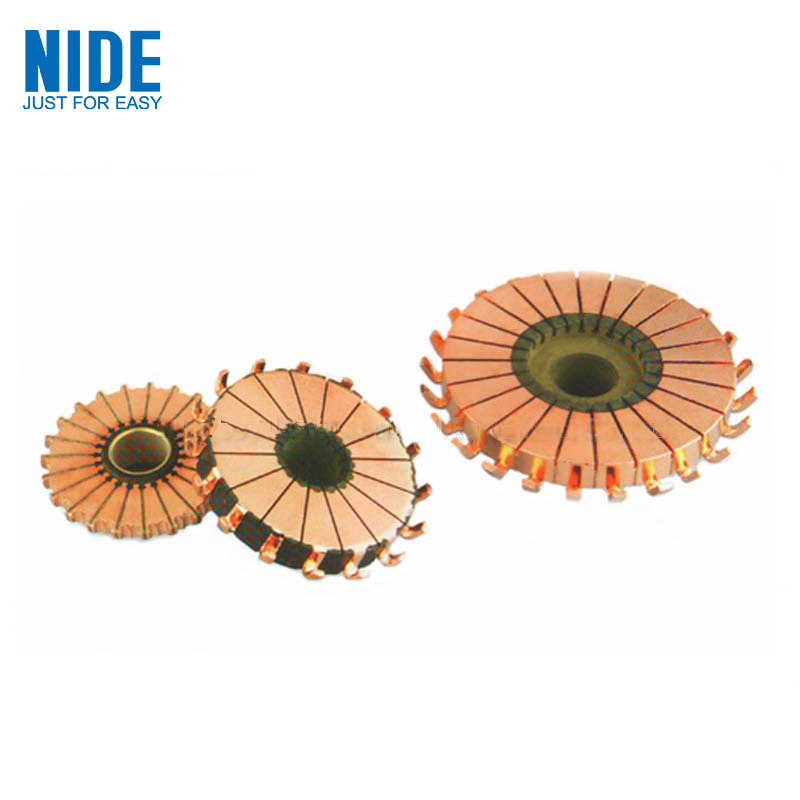

Commutator fun Electric Planer

1.Ọja Ifihan

Awọn Commutator wa ni o kun lo fun ina planer. O jẹ ti awọn ohun elo aise ti ko wọle ati iṣẹ rẹ ti de ipele ilọsiwaju ti kariaye.

1. Sliver Ejò pẹlu ga aniyan ati ki o wọ resistance

2. Long iye akoko

3. Jakejado ibiti o ti commutator

4. Wide ohun elo ti commutator

5. Didara to dara

6. Ṣe agbejade onisọpọ gẹgẹbi iyaworan alabara.

2.Product Parameter (Specification)

Apakan No.	O.D (D)	I.D (d)	Lapapọ O D (D1)	Pẹpẹ No(N)	Gigun igi (L1)	Lapapọ ipari (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Ẹya Ati Ohun elo

TheElectric Planer Commutator jẹ lilo pupọ ni awọn irinṣẹ agbara, awọn ohun elo ile, awọn ọkọ ayọkẹlẹ, awọn alupupu alupupu ati awọn aaye miiran; -odè oruka, erogba fẹlẹ holders, onirin lọọgan ni orisirisi awọn pato ati si dede. O ti wa ni lo ninu mọto ayọkẹlẹ Generators, petirolu Generators ati awọn miiran oko.

4.Ọja Awọn alaye

Commutator fun Electric Planer

1. Igbeyewo foliteji: igi si igi ni 500V, 1s, bar lati bi ni 1500V, 1 min, laisi fifọ tabi ikosan.

2. Idanwo Spin: ṣe idanwo iyipo fun onisọpọ labẹ 140 centigrade, 5000RPM, 3min. Lẹhin idanwo, iyatọ ti o pọju ti iwọn ila opin ita jẹ 0.015, ti igi ati igi jẹ 0.005.

4. Ofe lati nkuta, dojuijako, tabi burr ni dada.
