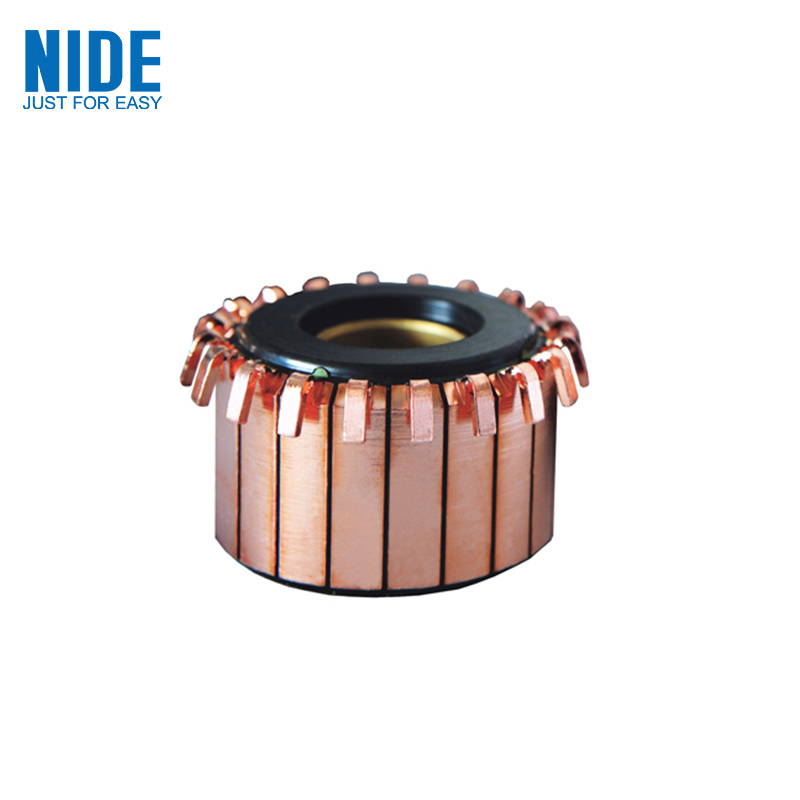

16 Apa Hight Didara Abala kio Commutator Armature

Oluyipada mọto naa dara mọto AC Nikan. NIDE commutator ni wiwa ni iwọn jakejado, diẹ sii ju 1200 oriṣiriṣi oriṣi ti commutator, pẹlu iru kio, iru riser, iru ikarahun, iru planar, lati OD 4mm si OD 150mm. Awọn commutators ti wa ni lilo pupọ si ile-iṣẹ ọkọ ayọkẹlẹ, awọn irinṣẹ agbara, awọn ohun elo ile, ati awọn ọkọ ayọkẹlẹ miiran.O le ni idaniloju lati ra Single Motor Commutator Fun AC Motor lati ile-iṣẹ wa ati pe a yoo fun ọ ni iṣẹ lẹhin-titaja ti o dara julọ ati ifijiṣẹ akoko.

Fi ibeere ranṣẹ

ọja Apejuwe

Onisọpọ mọto ẹyọkan fun mọto AC

1.Ọja Ifihan

Onisọpọ mọto ẹyọkan fun mọto AC jẹ Ọfẹ lati o ti nkuta, dojuijako, tabi burr ni dada.

Idanwo foliteji: igi si igi ni 500V, 1s, igi lati bi ni 1500V, 1 min, laisi fifọ tabi ikosan.

Idanwo yiyi: ṣe idanwo alapin fun onisọpọ labẹ 140 centigrade, 5000RPM, 3min. Lẹhin idanwo, iyatọ ti o pọju ti iwọn ila opin ita jẹ 0.015, ti igi ati igi jẹ 0.005.

Idaabobo idabobo: 500V, diẹ ẹ sii ju 50MÎ ©

2.Product Parameter (Specification)

Apakan No.	O.D (D)	I.D (d)	Lapapọ O D (D1)	Pẹpẹ No(N)	Gigun igi (L1)	Lapapọ ipari (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17
